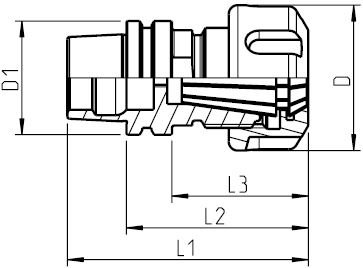

HSK25E COLLET CHUCK
according to DIN69893-5, in the following sizes:
- ER16 (DIN6499, clamping range 1-10mm)
Hardened and hard-turned, left-hand version available on request
Scope of delivery: without collet, including collet nut
| Cone | Size | D | D1 | L1 | L2 | L3 | Article Number |
|---|---|---|---|---|---|---|---|
| HSK25 E | ER16 | 32mm | 25mm | 53mm | 40mm | 30mm | SPZHSK25E04016ERR |

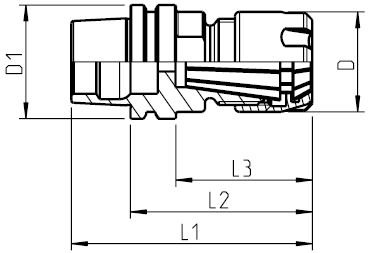

HSK25E MINI COLLET CHUCK
according to DIN69893-5, in the following sizes:
- ER16 (DIN6499, clamping range 1-10mm)
Hardened and hard-turned, balanced, left-hand version available on request
Scope of delivery: without collet, including mini collet nut
| cone | Size | D | D1 | L1 | L2 | L3 | Article number |
|---|---|---|---|---|---|---|---|
| HSK25 E | ER16 | 22mm | 25mm | 53mm | 40mm | 30mm | SPZHSK25E04016ERM |
