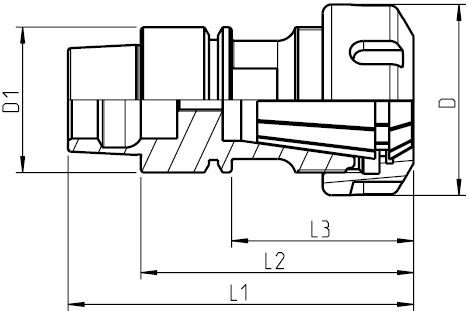

HSK32E COLLET CHUCK
according to DIN 69893-5, in the following sizes:
- ER20 (DIN6499, clamping range 1-13mm)
- ER25 (DIN6499, clamping range 1-16mm)
Hardened and hard-turned, balanced, left-hand version available on request
Scope of delivery: without collet, including collet nut
| cone | Size | D | D1 | L1 | L2 | L3 | Article number |
|---|---|---|---|---|---|---|---|
| HSK32 E | ER20 | 35mm | 32mm | 66mm | 50mm | 30mm | SPZHSK32E05020ERR |
| HSK32 E | ER20 | 35mm | 32mm | 71mm | 55mm | 35mm | SPZHSK32E05520ERR |
| HSK32 E | ER25 | 42mm | 32mm | 76mm | 60mm | 40mm | SPZHSK32E06025ERR |

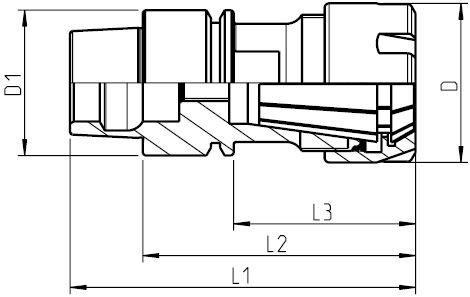

HSK32E MINI COLLET CHUCK
according to DIN 69893-5, in the following sizes:
- ER20 Mini (DIN6499, clamping range 1-13mm)
- ER25 Mini (DIN6499, clamping range 1-16mm)
Hardened and hard-turned, balanced, left-hand version available on request
Scope of delivery: without collet, including mini collet nut
| Cone | Size | D | D1 | L1 | L2 | L3 | Article Number |
|---|---|---|---|---|---|---|---|
| HSK32 E | ER20 | 28mm | 32mm | 66mm | 50mm | 30mm | SPZHSK32E05020ERM |
| HSK32 E | ER25 | 35mm | 32mm | 76mm | 60mm | 40mm | SPZHSK32E06025ERM |
