HSK40A COLLET CHUCK
according to DIN 69893-1, in the following sizes:
- ER16 (DIN6499, clamping range 1-10mm)
- ER20 (DIN6499, clamping range 1-13mm)
- ER25 (DIN6499, clamping range 1-16mm)
- ER32 (DIN6499, clamping range 1-20mm)
Hardened and hard-turned, balanced, left-hand version available on request
Scope of delivery: without collet, including collet nut

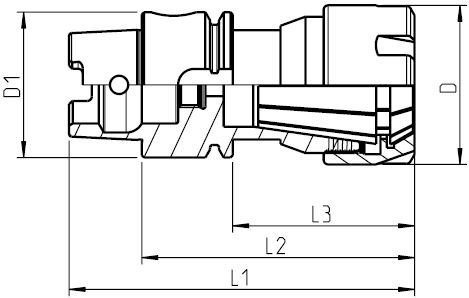

| cone | Size | D | D1 | L1 | L2 | L3 | Article number |
|---|---|---|---|---|---|---|---|
| HSK40 A | ER16 | 32mm | 40mm | 80mm | 60mm | 40mm | SPZHSK40A06016ERR |
| HSK40 A | ER20 | 35mm | 40mm | 80mm | 60mm | 40mm | SPZHSK40A06020ERR |
| HSK40 A | ER25 | 42mm | 40mm | 90mm | 70mm | 50mm | SPZHSK40A07025ERR |
| HSK40 A | ER32 | 50mm | 40mm | 100mm | 80mm | 60mm | SPZHSK40A08032ERR |
