ISO 20 COLLET CHUCK
according to ISO 7388-1, in the following sizes:
- ER16 Mini (DIN6499, clamping range 1-10mm)
- ER20 Mini (DIN6499, clamping range 2-13mm)
with mini thread, hardened and hard-turned, balanced,
also available as a left-hand version.
Scope of delivery: without collet, with mini clamping nut and drawbar of your choice.

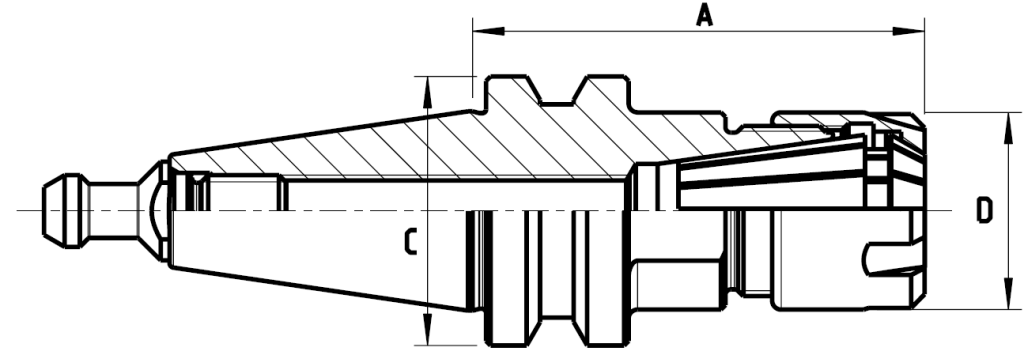

| Cone | Size | D | A | C | Article Number |
|---|---|---|---|---|---|
| ISO 20 | ER16 | 22 | 51 | 30 | SPZ20ISO05116ERM |
| ISO 20 | ER20 | 28 | 51 | 30 | SPZ20ISO05120ERM |
