PBT30 DUAL CONTACT COLLET CHUCK
according to DIN69893-6, in the following sizes:
- ER16 (DIN6499, clamping range 1-10mm)
- ER20 (DIN6499, clamping range 1-13mm)
- ER25 (DIN6499, clamping range 1-16mm)
- ER32 (DIN6499, clamping range 3-20mm)
- ER40 (DIN6499, clamping range 4-26mm)
Hardened and hard-turned, balanced, left-hand version available on request
Scope of delivery: without collet, including collet nut.

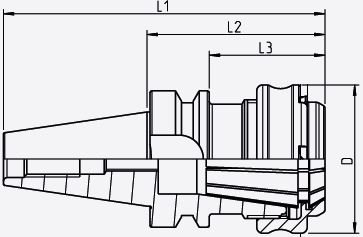

| Cone | Nominal size | Clamping Range | D | L1 | L2 | L3 | Article Number |
|---|---|---|---|---|---|---|---|
| PBT-30 | ER16 | 1-10mm | 28 | 108.5mm | 70mm | 49mm | SPZ30PBT07016ERR |
| PBT-30 | ER20 | 1-13mm | 34 | 108.5mm | 60mm | 39mm | SPZ30PBT06020ERR |
| PBT-30 | ER25 | 1-16mm | 40 | 108.5mm | 60mm | 39mm | SPZ30PBT06025ERR |
| PBT-30 | ER32 | 2-20mm | 50 | 108.5mm | 60mm | 39mm | SPZ30PBT06032ERR |
| PBT-30 | ER40 | 3-25mm | 63 | 108.5mm | 70mm | 49mm | SPZ30PBT07040ERR |
