HSK40F MINI COLLET CHUCK
according to DIN 69893-6, in the following sizes:
- ER16 (DIN6499, clamping range 1-10mm)
- ER20 (DIN6499, clamping range 1-13mm)
- ER25 (DIN6499, clamping range 1-16mm)
- ER32 (DIN6499, clamping range 3-20mm)
Hardened and hard-turned, balanced, left-hand version available on request
Scope of delivery: without collet, including mini collet nut

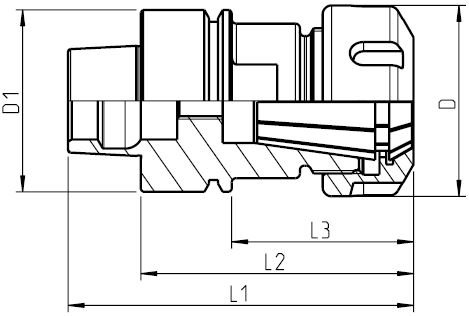

| cone | Size | D | D1 | L1 | L2 | L3 | Article number |
|---|---|---|---|---|---|---|---|
| HSK40 F | ER16 | 22mm | 40mm | 66mm | 50mm | 30mm | SPZHSK40F05016ERM |
| HSK40 F | ER20 | 28mm | 40mm | 76mm | 60mm | 40mm | SPZHSK40F06020ERM |
| HSK40 F | ER25 | 35mm | 40mm | 86mm | 70mm | 50mm | SPZHSK40F07025ERM |
| HSK40 F | ER32 | 43mm | 40mm | 81mm | 65mm | 45mm | SPZHSK40F06532ERM |
