HSK40E INTERNAL COLLET CHUCK
according to DIN 69893-5, in the following sizes:
- ER11 (DIN6499, clamping range 1-7mm)
- ER16 (DIN6499, clamping range 1-10mm)
- ER20 (DIN6499, clamping range 1-13mm)
- ER25 (DIN6499, clamping range 1-16mm)
Hardened and hard-turned, balanced, left-hand version available on request
Scope of delivery: without collet, including ZETA safety collet nut

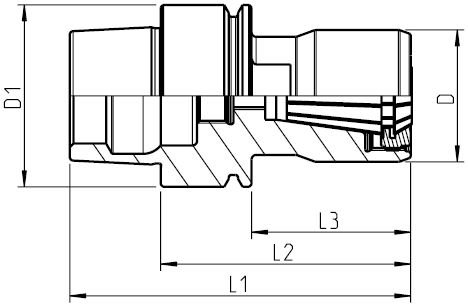

| cone | Size | D | D1 | L1 | L2 | L3 | Article number |
|---|---|---|---|---|---|---|---|
| HSK40 E | ER11 | 22mm | 40mm | 80mm | 60mm | 40mm | SPZHSK40E06011ERI |
| HSK40 E | ER16 | 29mm | 40mm | 75mm | 55mm | 35mm | SPZHSK40E05516ERI |
| HSK40 E | ER20 | 33mm | 40mm | 80mm | 60mm | 40mm | SPZHSK40E06020ERI |
| HSK40 E | ER25 | 37mm | 40mm | 85mm | 65mm | 45mm | SPZHSK40E06525ERI |
