HSK50F COLLET CHUCK
according to DIN 69893-6, in the following sizes:
- ER32 (DIN6499, clamping range 3-20mm)
- OZ25 (DIN6388, clamping range 2-25mm)
Hardened and hard-turned, balanced, left-hand version available on request
Scope of delivery: without collet, including collet nut

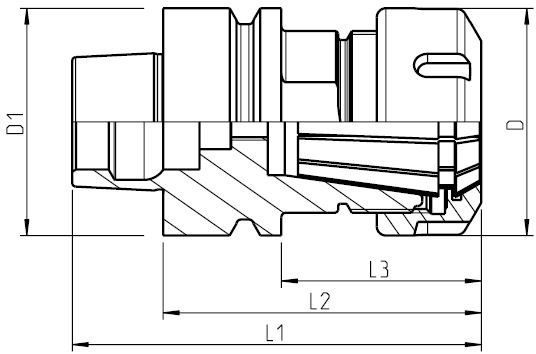

| cone | Size | D | D1 | L1 | L2 | L3 | Article number |
|---|---|---|---|---|---|---|---|
| HSK50 F | ER32 | 50mm | 50mm | 90mm | 70mm | 44mm | SPZHSK50F07032ERR |
| HSK50 F | OZ25 | 60mm | 50mm | 96mm | 76mm | 50mm | SPZHSK50F07625OZR |
| HSK50 F | OZ25 | 60mm | 50mm | 135mm | 115mm | 89mm | SPZHSK50F11525OZR |
